Edmonton, Alberta · Graduating April 2027

I build embedded hardware and keep live-event networks running.

Psychology major and Computing Science minor at the University of Alberta. I spent the summer on the timing and network crew at Foote Field, and my evenings on an ESP32 scoreboard and a home server I cabled myself. Looking for work in controls, building automation and IIoT software.

Email me GitHub LinkedIn

Projects

2026 · ESP32, C++, Bluetooth Low Energy, Fusion 360, CadQuery

ESP32 LED scoreboard

A battery-powered table tennis scoreboard. An ESP32 drives P10 LED matrix panels and takes score input over Bluetooth Low Energy from custom button controls.

Designed the power system around a LiPo cell with TP4056 charging, and wired the ESP32 to the panel's HUB12 interface.
Modeled the enclosure, panel rails and stand as parametric Fusion 360 Python scripts, and the button case in CadQuery, so a dimension change regenerates the part.
3D printed all parts.

Source, wiring and CAD on GitHub ↗

Build photos and diagrams 6

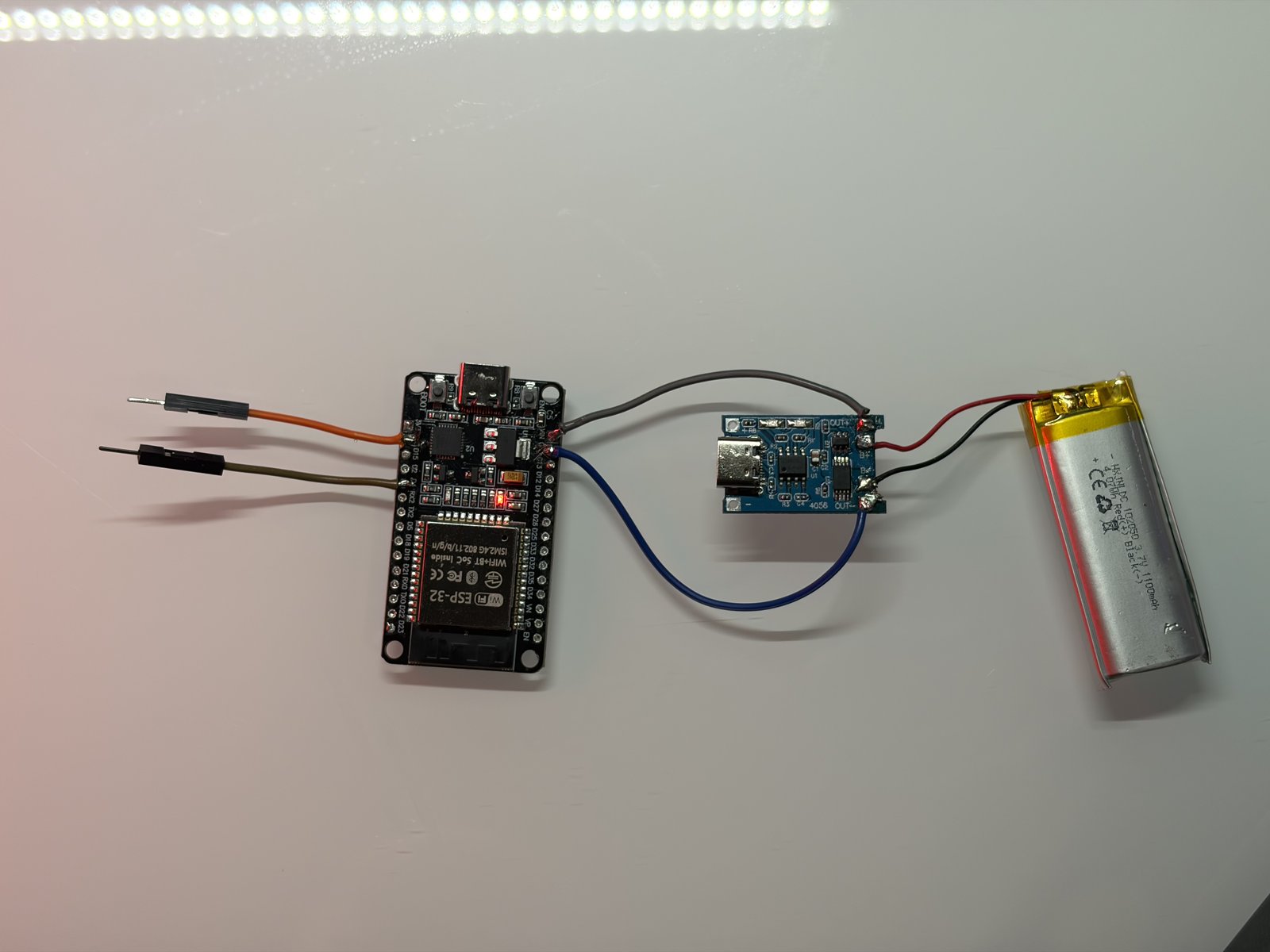

Player button electronics: ESP32, TP4056 charger and LiPo cell — Button electronics on the bench

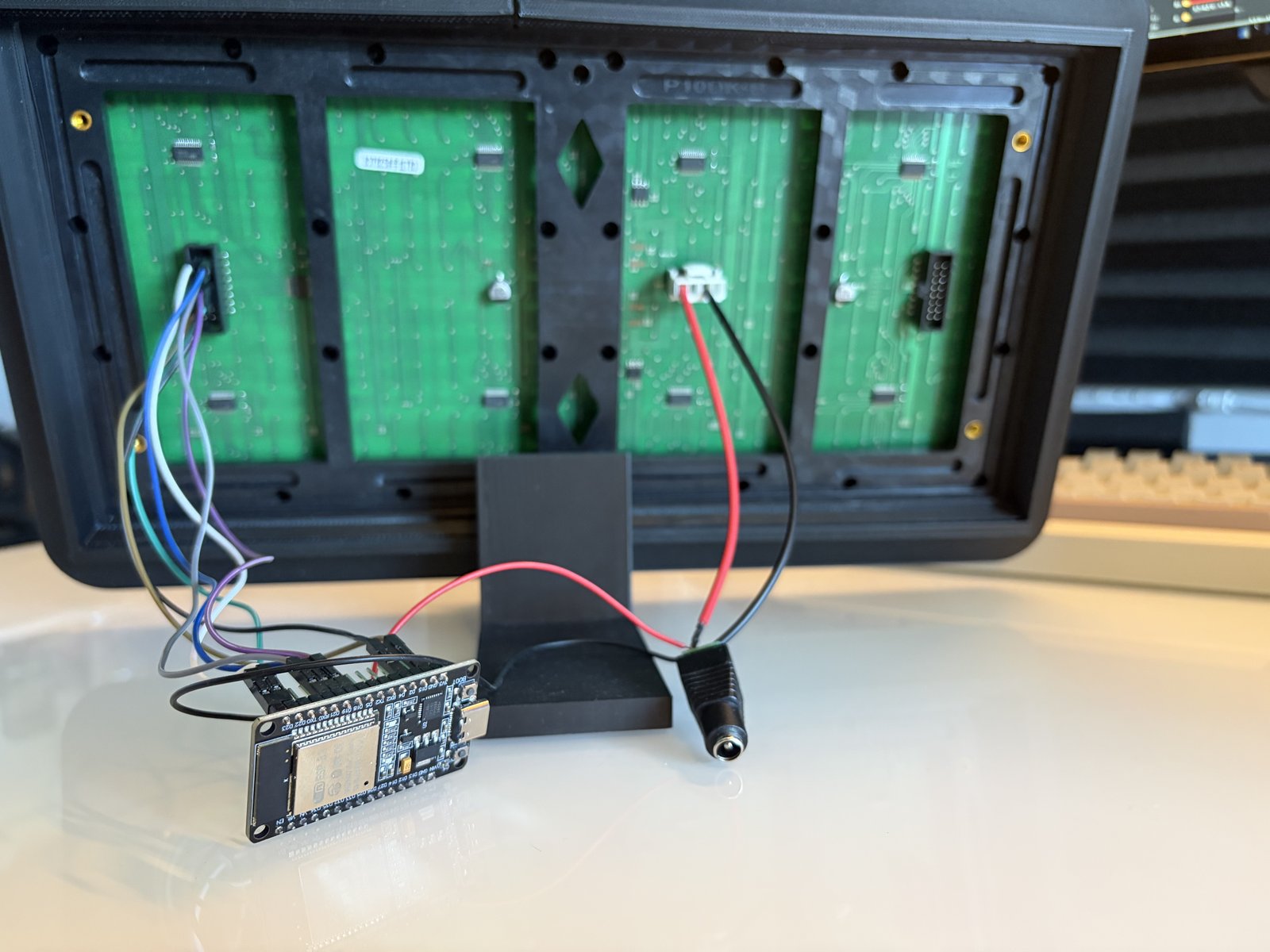

ESP32 wired to the back of the P10 panel in its printed frame — ESP32 wired to the panel

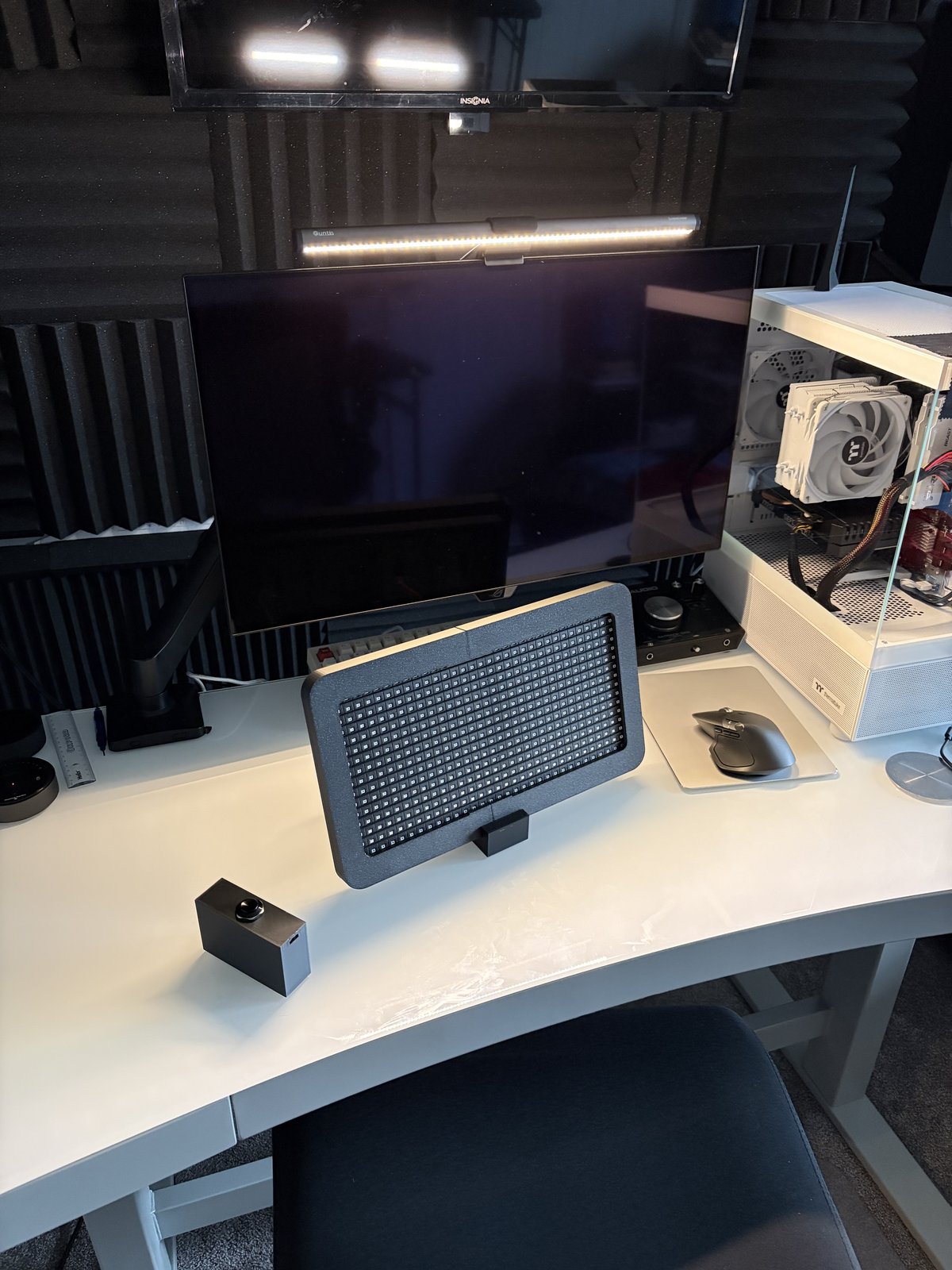

The finished scoreboard on a desk next to a player button — On the desk with a player button

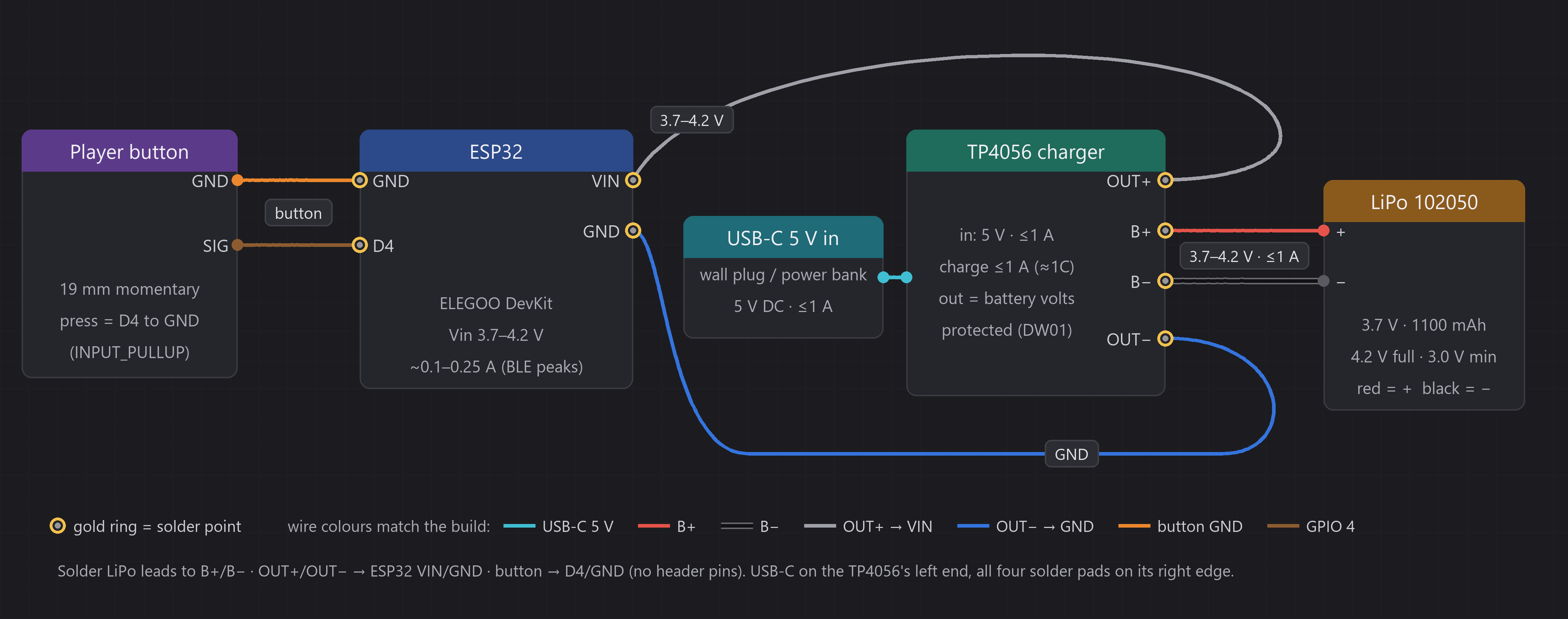

Power diagram: USB-C into a TP4056 charger, LiPo cell, and ESP32 — Power system

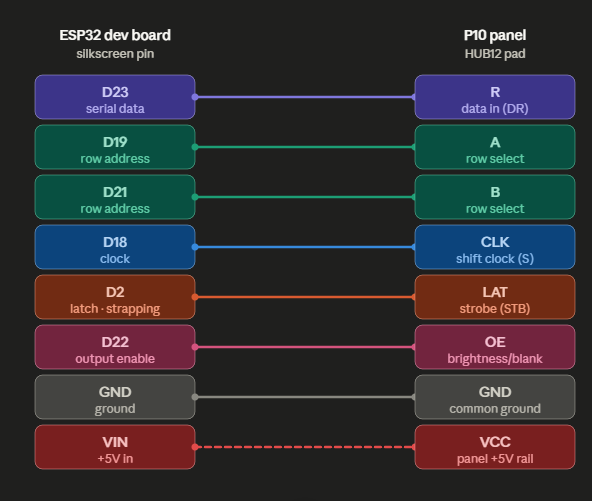

Pin map from the ESP32 dev board to the P10 panel's HUB12 pads — ESP32 to panel pin map

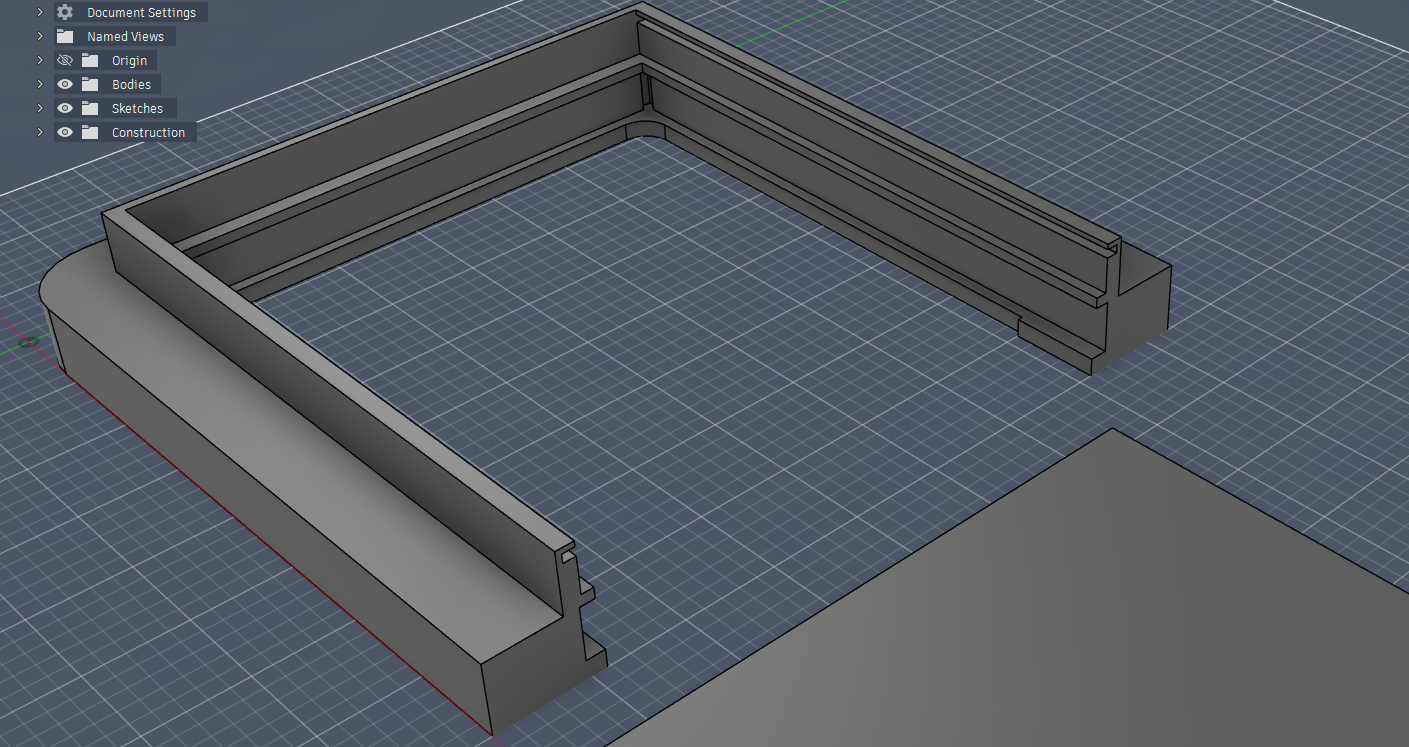

Fusion 360 model of the scoreboard enclosure frame — Enclosure frame in Fusion 360

Ongoing · Linux, Proxmox, Raspberry Pi, Tailscale

Self-hosted home server

A home server and network built from the ground up on mini PCs and Raspberry Pis, in a small rack with a managed switch and patch panel.

Administer Linux and Proxmox hosts on static IPs.
Remote access over Tailscale, plus subnetting, gateway and DNS configuration.
Hand-run Cat5 cabling between the rack and the rest of the house.

Rack photos 2

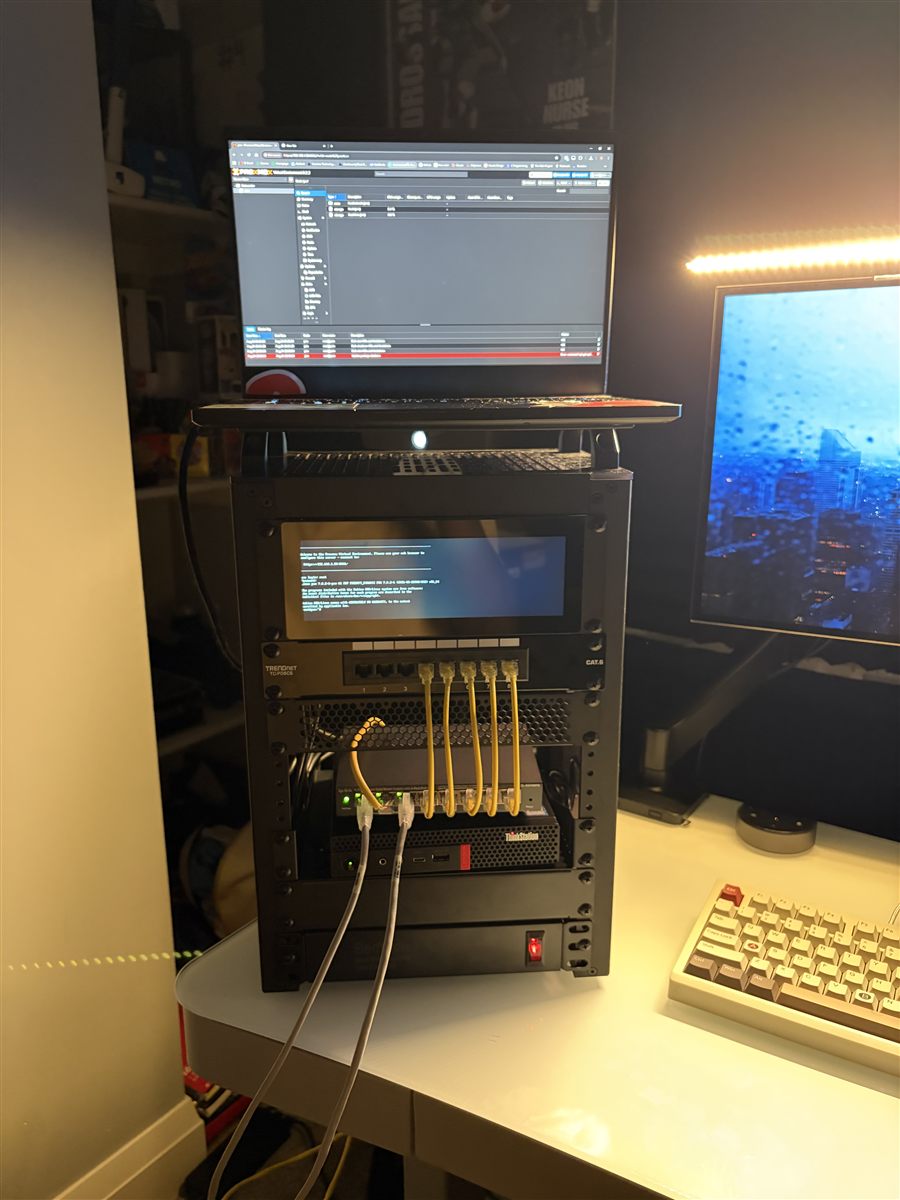

Front of a small server rack with a patch panel, managed switch and mini PC, and a laptop on top showing Proxmox — Front: patch panel, switch, mini PC

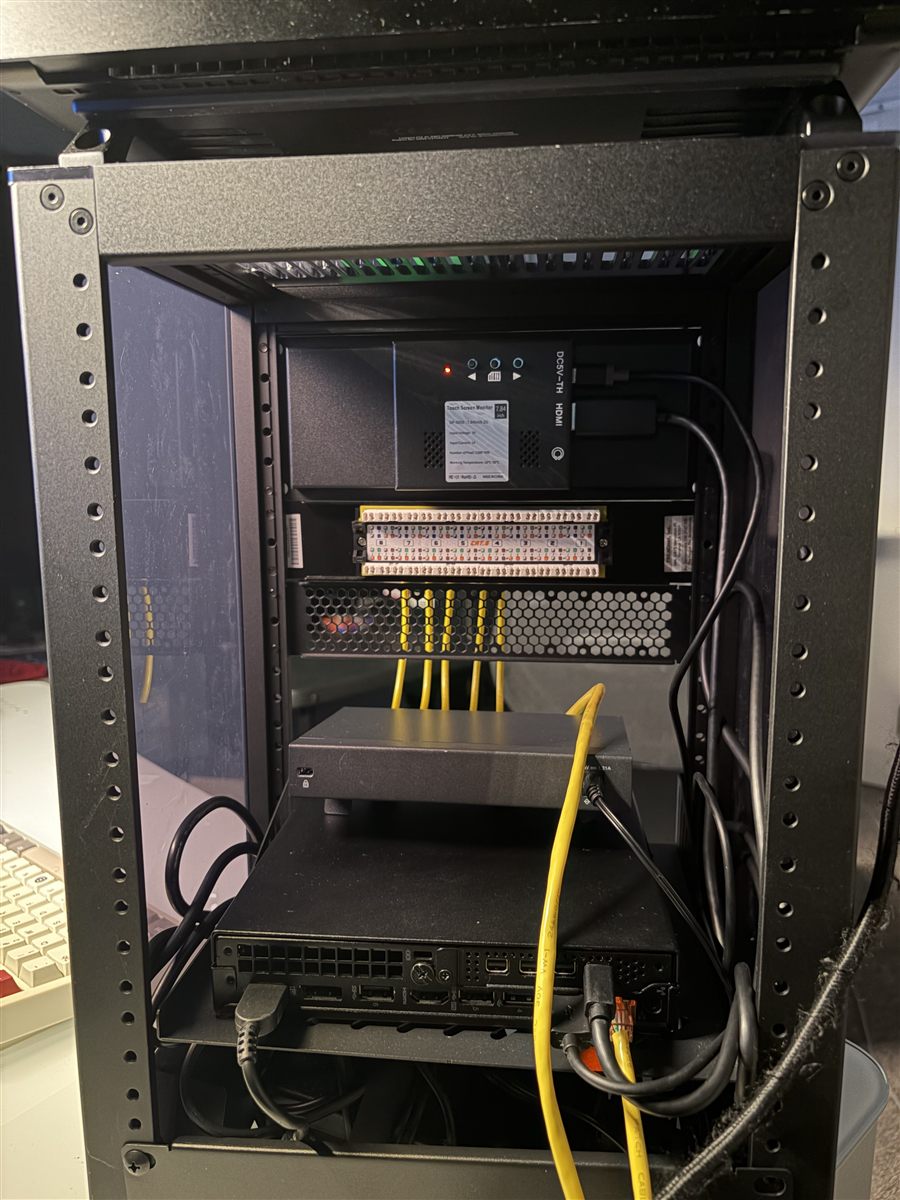

Rear of the rack showing the punched-down patch panel and cable runs — Rear: punch-down and cable runs

Experience

Timing and Network Crew

University of Alberta Golden Bears and Pandas Track and Field · June 2026 to present, seasonal

5th Annual Edmonton Athletics Invitational ↗ July 12, 2026 · Foote Field · billed as Canada's top-ranked track and field meet, with Olympic and world medallists on the start lists

FinishLynx
FieldLynx
NetExchange
NovaStar LED
Managed switches
Fiber media converters
Mesh Wi-Fi
Network isolation

Set up and supported the meet LAN at Foote Field for the timing, results and display systems.
Kept the FinishLynx photo-finish cameras on their own isolated network, away from general traffic.
Documented the meet tech setup so every event can be run the same way.

The meet setup and network map more

Timing: FinishLynx photo-finish cameras and the timing PC, kept on their own isolated network.
Field events: FieldLynx on tablets and Windows 11 mini PCs, connected over the venue Wi-Fi.
Results: the NetExchange results hub, feeding the LED scoreboard and live online results.
Display: the NovaStar LED scoreboard chain, from controller to panels.
Network: managed switches, fiber media converters, mesh Wi-Fi and long cable runs across Foote Field.

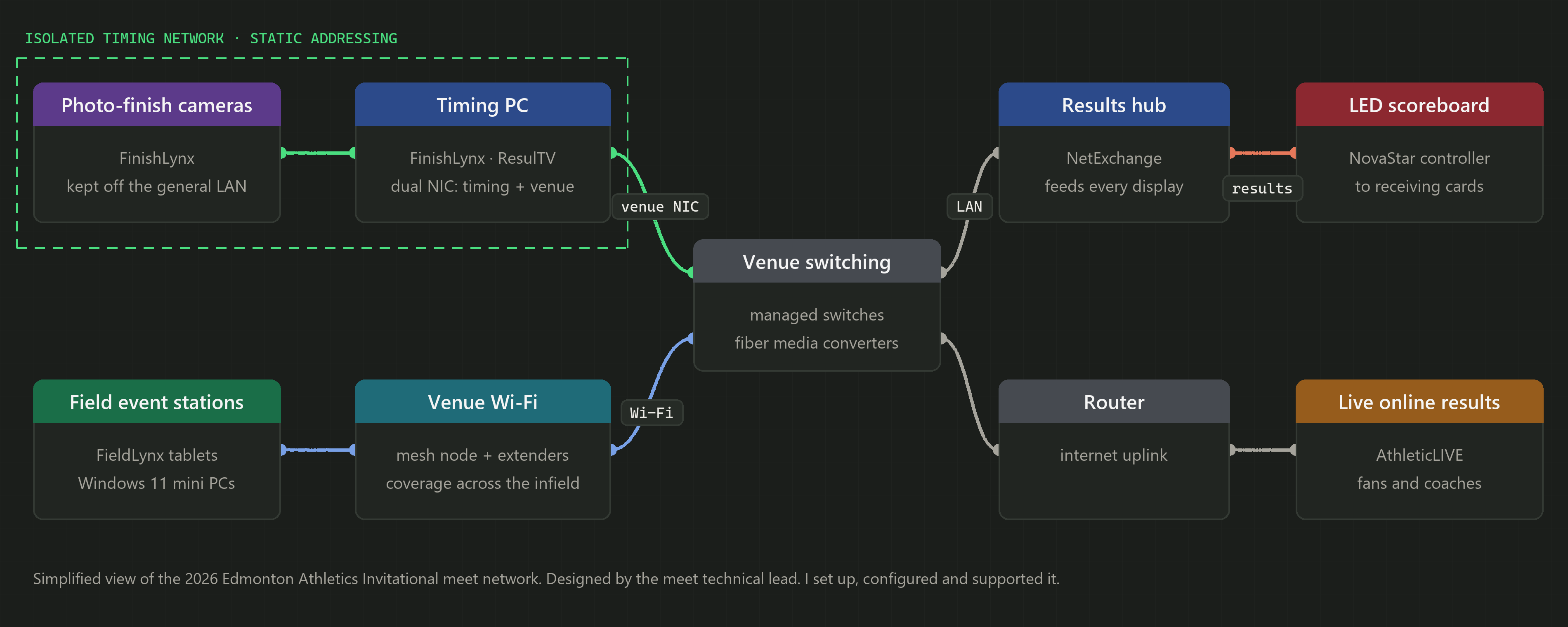

Simplified meet network: isolated photo-finish cameras and timing PC, field event stations on venue Wi-Fi, venue switching, results hub feeding the LED scoreboard, router feeding live online results — Simplified meet network

IT Consultant

FACTSnet, Alberta non-profit · April 2026 to August 2026

Supported the organisation's Blogspot sites and Google Workspace accounts.
Walked non-technical staff and community users through web tools over screen share.

Web Development Instructor

Black Boys Code · Summer 2026

Black Boys Code ↗ After-school STEM programs for Black youth across Canada

EduBlocks
Web basics
Online teaching

Taught web development with EduBlocks to students in an online after-school coding program.

Skills

Languages: C, C++ (Arduino and ESP32), Python, Kotlin (in progress), RISC-V assembly, HTML, CSS, JavaScript
Networking: TCP/IP, static IP and DHCP, managed switches, network isolation, SMB file sharing, Windows Firewall, ping and ipconfig diagnostics, Tailscale
Hardware: ESP32, Bluetooth Low Energy, P10 LED matrix panels, LiPo and TP4056 power, Raspberry Pi, Fusion 360 with parametric Python scripting, 3D printing
Systems and tools: Linux, Windows 11, Proxmox, Git and GitHub, Google Workspace admin, FinishLynx, FieldLynx

Currently studying for CompTIA Network+.

Education

BA Psychology, Minor in Computing Science

University of Alberta · Expected April 2027

Relevant coursework: CMPUT 174 and 175 (programming), CMPUT 201 (C programming), CMPUT 229 (computer architecture, RISC-V), CMPUT 301 (software engineering, in progress).

Psychology and computing together is the point. I can work out why a results service went quiet, and I can also explain it to the person whose screen just went blank.
